INDUSTRIAL CELLULAR ROUTE

מפרט טכני

• SPECIFICATIONS: Digi IX30 with Digi 360*
• CERTIFICATIONS**: Visit product certifications for latest approvals and updates
• CONNECTORS: (3) 50 Ω SMA (2x cellular, 1x GNSS); center pin: female
• SIM SLOTS: (2) Mini-SIM (2FF)
• ESIM SUPPORT: Digi eSIM optional 2FF accessory ( IX30-0EG4 )
• SIM SECURITY: Screw-down SIM cover
• REMOTE MANAGEMENT: Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS
• LOCAL MANAGEMENT: WebUI (HTTP/HTTPS); CLI (Telnet, SSH, Serial)
• MANAGEMENT/ TROUBLESHOOTING TOOLS: FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
• PORTS: (2) RJ-45; 10/100 Mbps (auto-sensing)
• STANDARD: RS-232/422/485
• SIGNAL SUPPORT: TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
• FLOW CONTROL: Software (XON/XOFF), hardware supported
• CONNECTOR: 12-pin screw down terminal block
• DIGITAL: 0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input
• ANALOG: (4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution
• DIMENSIONS (L X W X H): 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in)
• WEIGHT: 0.5 kg (1.1 lb)
• STATUS LEDS: Signal Strength (5), LTE, Power
• MOUNTING: DIN rail mount
• POWER INPUT: 9 – 30 VDC, reverse polarity protection, 18 W min power source required
• POWER CONNECTOR: Screw down removable terminal block
• HAZARDOUS (CLASS 1 DIV 2): Complete
• STORAGE TEMPERATURE: −40 °C to 85 °C (−40 °F to 185 °F)
• ETHERNET ISOLATION: 1.5 kV RMS

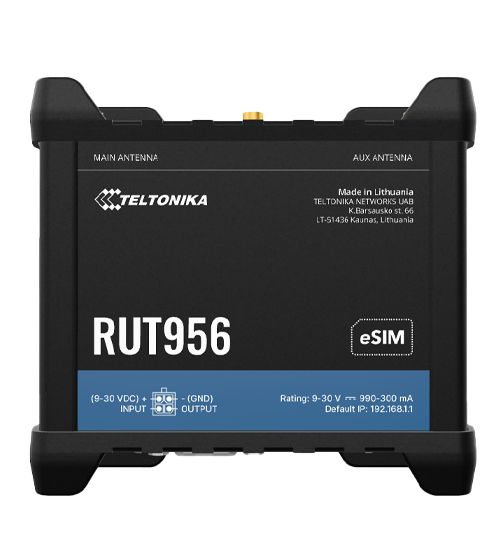

מק"ט יצרן: CIRRUT956

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
