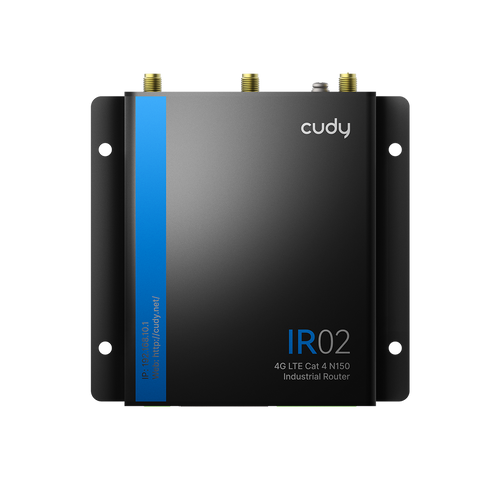

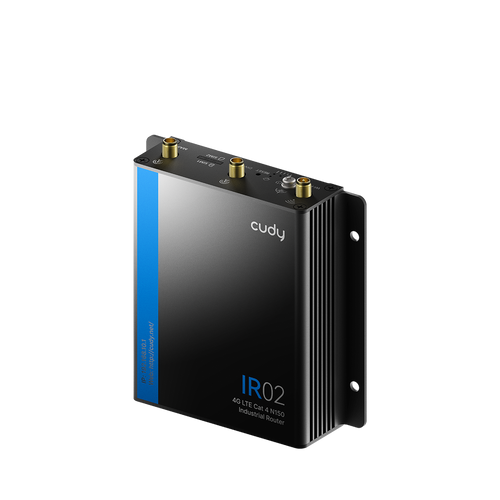

Cudy 4G LTE Cat 4 N150 Industrial Wi-Fi Router IR02_EU

מפרט טכני

• CPU: 580MHz Single-Core, MIPS24KEC
• Flash Memory: 16MB (128 Mbit) NOR
• RAM: 128MB (1 Gbit) DDR2
• Cellular Standard: 4G LTE Cat. 4
• SIM Slots: 2 × Nano SIM
• Cellular Antennas: 2 × Detachable (1.5 m cable length)
• Cellular Antenna Connector: SMA Female
• Available Versions: EU, US, ME, LA
• Maximum Download Speed: Up to 150 Mbps
• Maximum Upload Speed: Up to 50 Mbps
• Cellular Technology: DL 2×2 MIMO
• GNSS Location Tracking: Optional (Customized Orders)
• GNSS Antennas: Optional (Customized Orders)
• Wi-Fi Speed: Up to 150 Mbps (2.4 GHz)
• Wi-Fi Streams: 1 Spatial Stream
• Wi-Fi Antennas: 1 × Detachable
• Wi-Fi Antenna Connector: RP-SMA Female
• Wi-Fi Coverage: Up to 80 m (262 ft)
• Wall Penetration: One wooden wall (<10 cm) or one concrete wall (<10 cm)

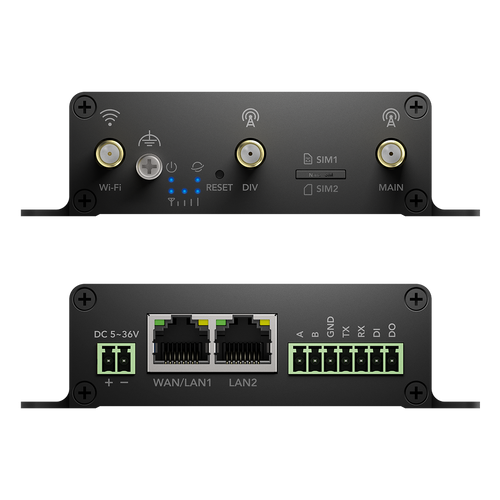

• Ethernet Ports: 2 × 10/100 Mbps RJ45
• Ethernet Configuration: Port 1 configurable as WAN/LAN, Port 2 LAN
• Industrial Interface: 1 × 7-PIN Industrial Socket
• Supported Industrial Protocols: RS232, RS485, Dual RS485 (customized models only)
• Digital Input: 1 × Galvanically Isolated Input (0–4V = State 0, 9–30V = State 1)
• Relay Output: 1 × Normally Open Internal Relay (Max. 30V DC / 250mA)
• Ground Connection: 1 × GND for Digital Input/Output
• LED Indicators: Power, Cellular, Cellular Signal Strength, Link/ACT for Ethernet Ports
• Physical Buttons: Reset Button
• Power Interface: 2-PIN DC Connector
• Power Input: 5–36V DC
• Power Adapter Included: Input: 100–240V~, 50/60Hz / Output: 12V⎓1A
• Maximum Power Consumption: 7W
• Idle Power Consumption: 1W
• Grounding Method: Grounding Point
• Power Protection: Reverse Polarity Protection, Overvoltage Protection, Surge Protection
• ESD Protection: IEC/EN 61000-4-2 Level 3 (Contact 6kV, Air 8kV)
• EMC Compliance: IEC/EN 61000-4-3, 4-4, 4-5, 4-6, 4-8, 4-9, 4-10
• Shock Resistance: IEC/EC 60068-2-27
• Vibration Resistance: IEC/EN 60068-2-6
• Free Fall Resistance: IEC/EN 60068-2-32
• Ingress Protection Rating: IP30
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 5%–95% RH, non-condensing
• Storage Humidity: 5%–95% RH, non-condensing
• Certifications: FCC, CE
• Housing Material: Metal
• Device Dimensions: 104.4 × 103 × 28.3 mm (4.11 × 4.06 × 1.11 in)
• Mounting Dimensions: 188 × 104.4 × 28.3 mm (7.4 × 4.11 × 1.11 in)
• Weight: 218.6 g (7.71 oz.)
• Installation Options: Wall-Mount
• Package Contents: IR02 Router, Power Adapter, Power Cable, Detachable Wi-Fi Antenna, Detachable Cellular Antennas, 2-PIN Connector, 7-PIN Connector, Ethernet Cable, Mounting Kit, Installation Guide

מק"ט יצרן: IR02_EU

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
