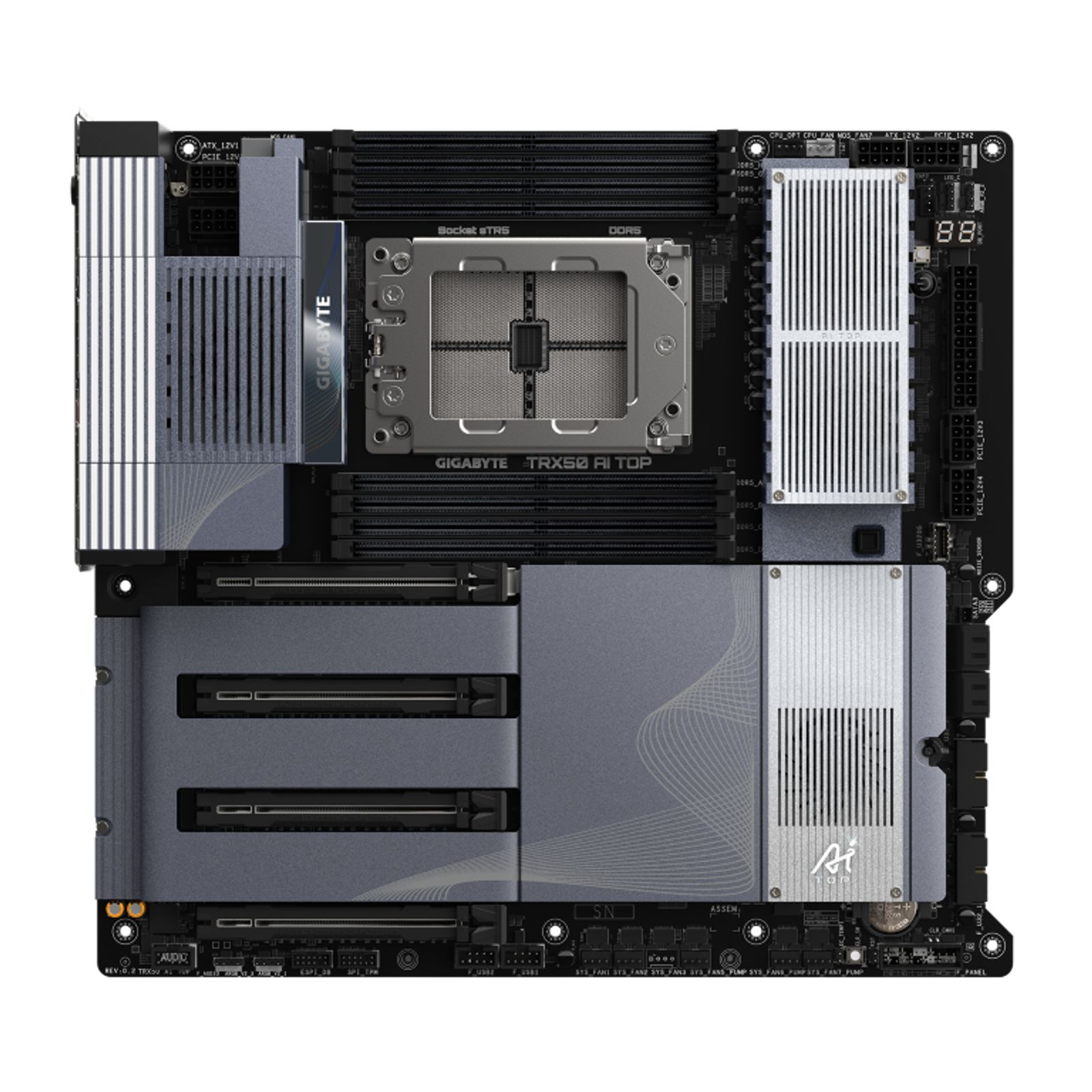

לוח אם Gigabyte TRX50 AI TOP for AMD sTR5 7000 series usb 4.0

מפרט טכני

• CPU: AMD Socket sTR5, support for: AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-W
• Chipset: AMD TRX50
• Memory: Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS) 8 x DDR5 DIMM sockets supporting up to 2 TB of system memory - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7
• Audio: Realtek® ALC4080 CODEC (rear panel audio) - Support for DTS:X® Ultra - High Definition Audio - 2-channel Realtek® ALC897 CODEC (front panel audio)
• LAN: 2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)
• Wireless Communication module: Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Act
• Expansion Slots: 3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU: - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x1
• Storage Interface: 3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX/9000 S
• USB: CPU: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel® USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel Chipset: - 1 x USB Type-C®
• Internal I/O Connectors: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 4 x PCIe power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan h
• Back Panel Connectors: 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB4® USB Type-C® port 6 x USB 3.2 Gen 2 Ty
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
• BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features: Support for GIGABYTE Control Center (GCC)
• Bundled Software: Norton® Internet Security (OEM version) LAN bandwidth management software

מק"ט יצרן: ML-29D04944

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
