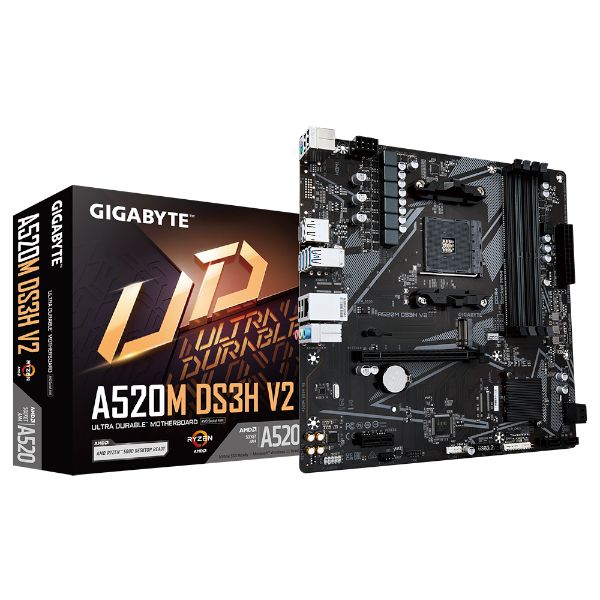

לוח אם GIGABYTE A520M DS3H V2 1.0 AM4 AMD MICRO-ATX

מפרט טכני

• CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Sup
• Chipset: AMD A520
• Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.
• Onboard Graphics: Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• Audio: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots: 1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode
• Storage Interface: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the
• USB: CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel
• Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x fr
• Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring: Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control
• BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features: Support for APP Center
• Bundled Software: Norton® Internet Security (OEM version) LAN bandwidth management software

מק"ט יצרן: ML-4026241D

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
