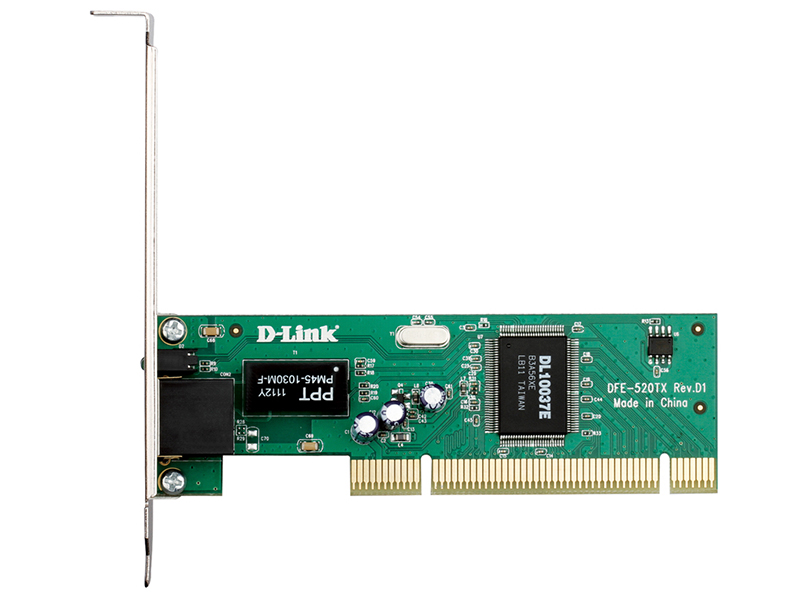

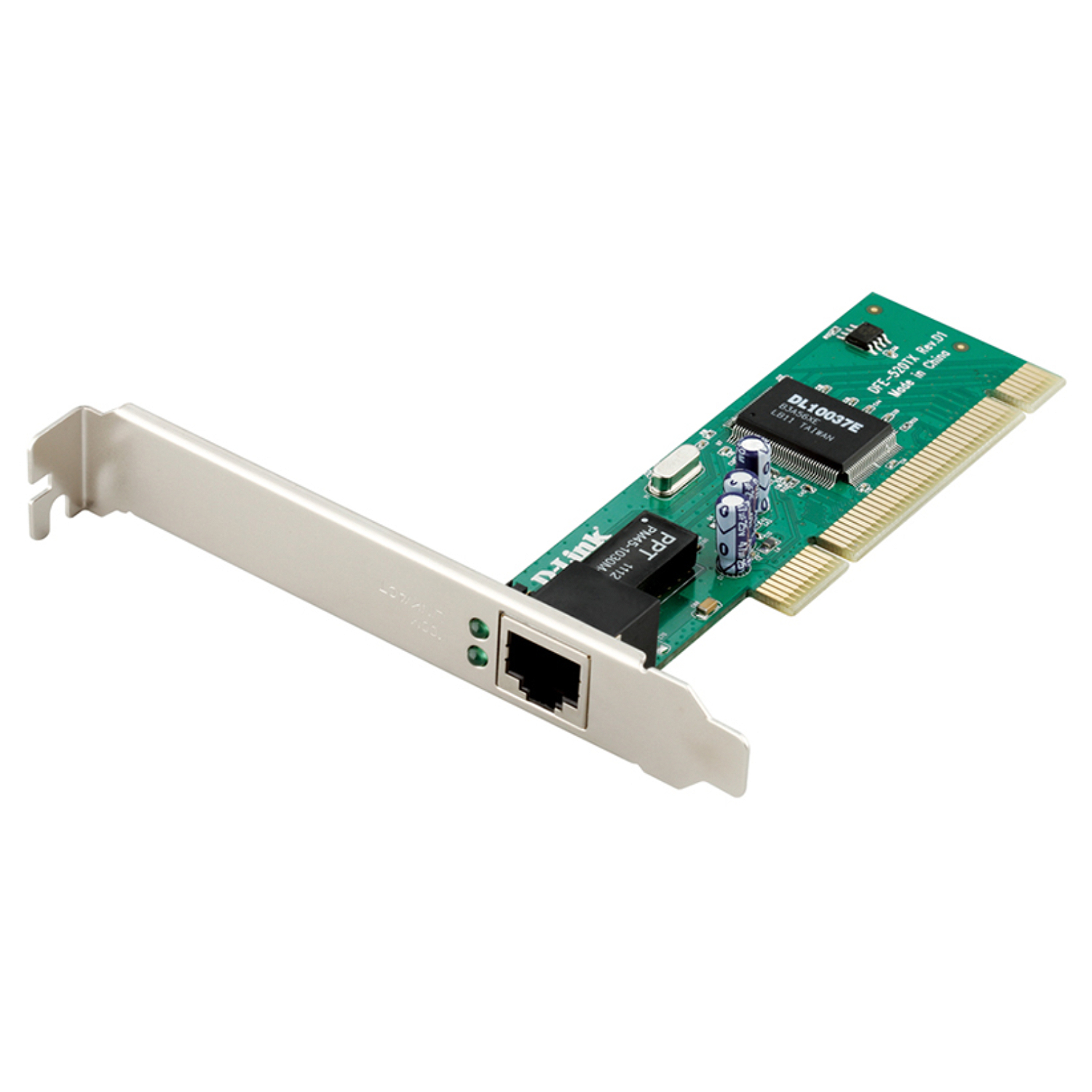

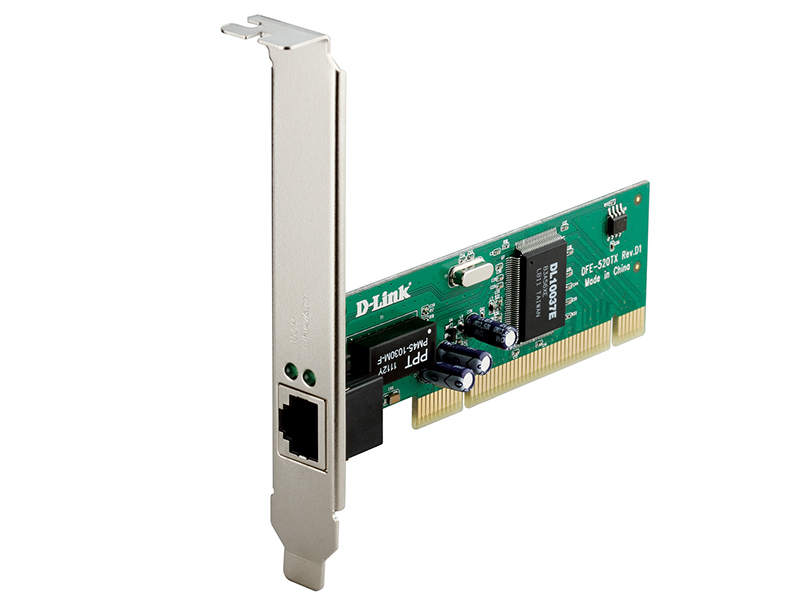

D-Link Network Adapter 10/100 PCI Dual Speed DFE-520TX

It can be installed in any PC equipped with a PCI expansion slot. This card makes extensive use of the single-chip technology and is equipped with an on-board FIFO buffer, providing your computer with a fast, reliable connection to an Ethernet network. Powerful Performance The DFE-520TX operates in the 32-bit Bus Master mode, delivering throughputs of multiple megabits per second, with little stress on the host CPU. The module transfers data directly to and from the host memory, bypassing bottlenecks in the system and alleviating the CPU workload. This allows your computer to concentrate on the application at hand, instead of the network operation task. Versatile Functionality The DFE-520TX single connector connects to either 10BASE-T Ethernet or 100Base-TX Fast Ethernet without the need for any configuration. It automatically detects and negotiates the highest available speed and duplex mode with the connected device for both 10Base-T and 100Base-TX modes. Device Interfaces • One 10/100Base-TX port Standards • IEEE 802.3i 10Base-T • IEEE 802.3u 100Base-TX • ANSI/IEEE 802.3 NWay auto-negotiation • PCI local bus 2.3 specifications Protocol • CSMA/CD Data Transfer Rates • Ethernet: 10 Mbps (half-duplex) / 20 Mbps (full-duplex) • Fast Ethernet: 100 Mbps (half-duplex) / 200 Mbps (full-duplex) Additional Functions • Wake-on-LAN: Active high Active low Positive pulse Negative pulse Diagnostic LEDs • 100M (speed) • LINK/ACT Physical Parameters Dimensions • 120 x 20 mm Power Consumption • Max: 0.37 W Temperature • Operating: 0 to 40 В°C • Storage: -25 to 55 В°C Humidity • Operating: 5 to 90% non-condensing Certifications • CE Class B • FCC Class B • C-Tick

מפרט טכני

• מהירות: מבואות 10/100Mbit
• מספר יציאות: 1
• ממשק: LAN · PCI

מק"ט יצרן: DFE-520TX

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
