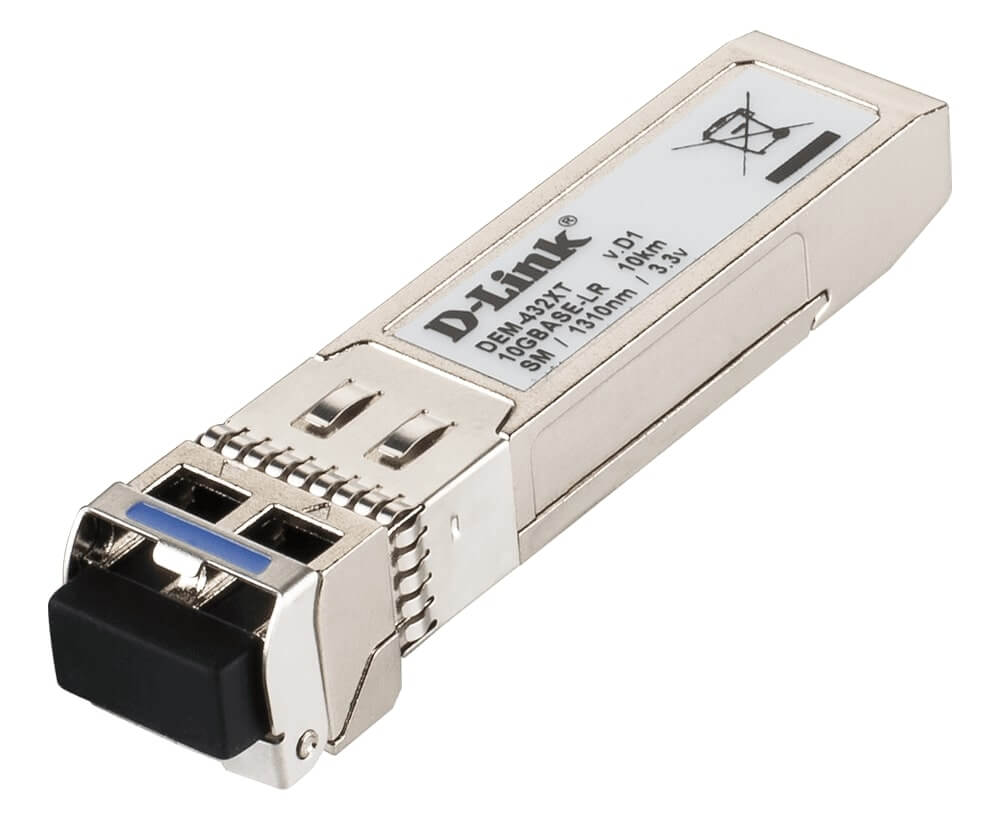

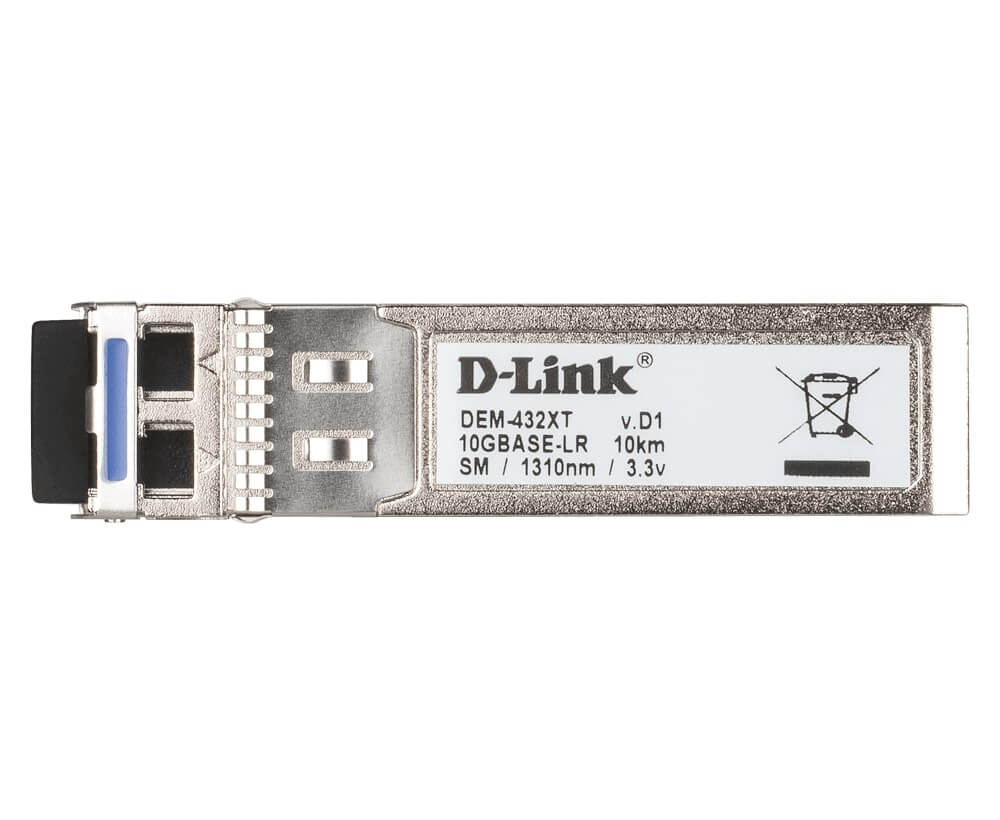

D-Link 10GBASE-LR SFP+ Transceiver Up to 10 km

General features Standard • IEEE 802.3ae 10GBase-LR Wavelength • 1310 nm Data Rate • 10 Gbps Connector • Duplex LC Fiber Type • 9/125 um Single-mode Fiber Maximum Fiber Cable Length • 10 km Transmit Power Range • 0,5 to -8 dBm Receive Power Range • -1 to -14.4 dBm Sensitivity • -14.4 dBm Supported Features • Hot swap • MSA compliant • RoHS compliant Physical Parameters Power Support • 3.3 V Supply Current • 300 mA Temperature • Operating: 0° to 70°C • Storage: -40° to 85°C Humidity • Operating: 0% to 85% • Storage: 0% to 85% Dimensions • 55.9 mm x 13.7 mm x 8.5 mm Certificates • Class 1 laser: EN 60825-1 • FDA 21 CFR 1040.10 и 1040.11 The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DEM-432XT uses the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. The DEM-432XT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link 10 Gigabit Ethernet switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP+ slot without having to turn off the power of the connected device.

מפרט טכני

• סוג חיבור: אופטי LC
• מהירות: מבואות 10Gbit

מק"ט יצרן: DEM-432XT

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
