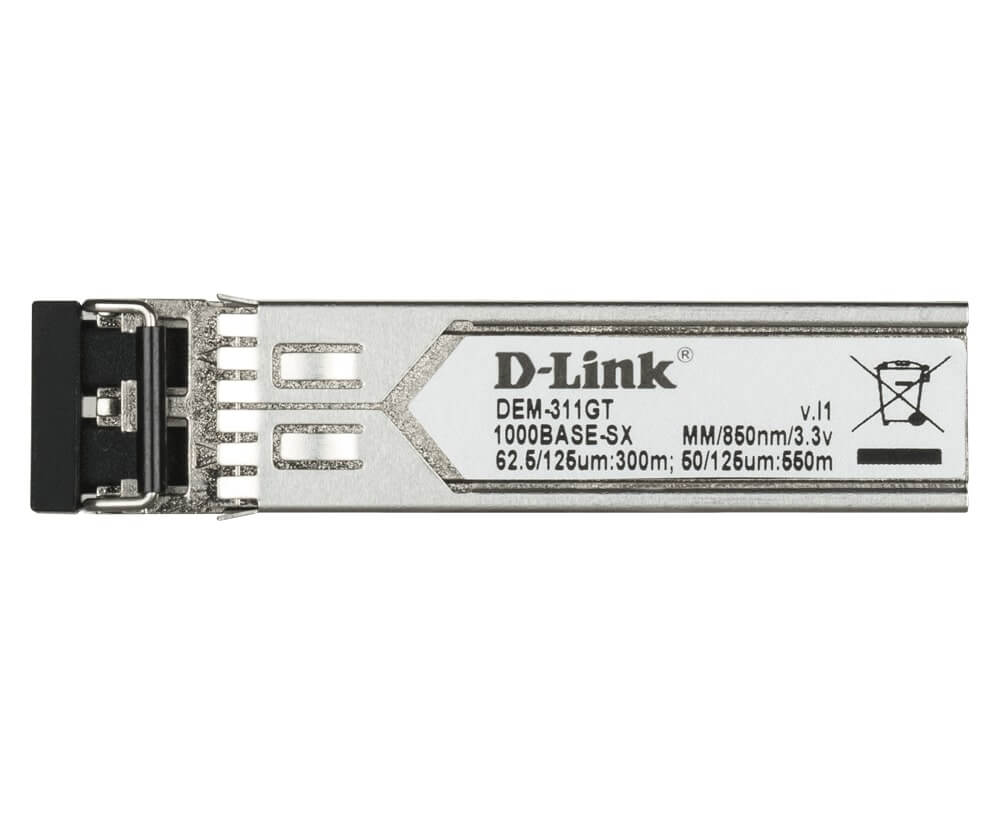

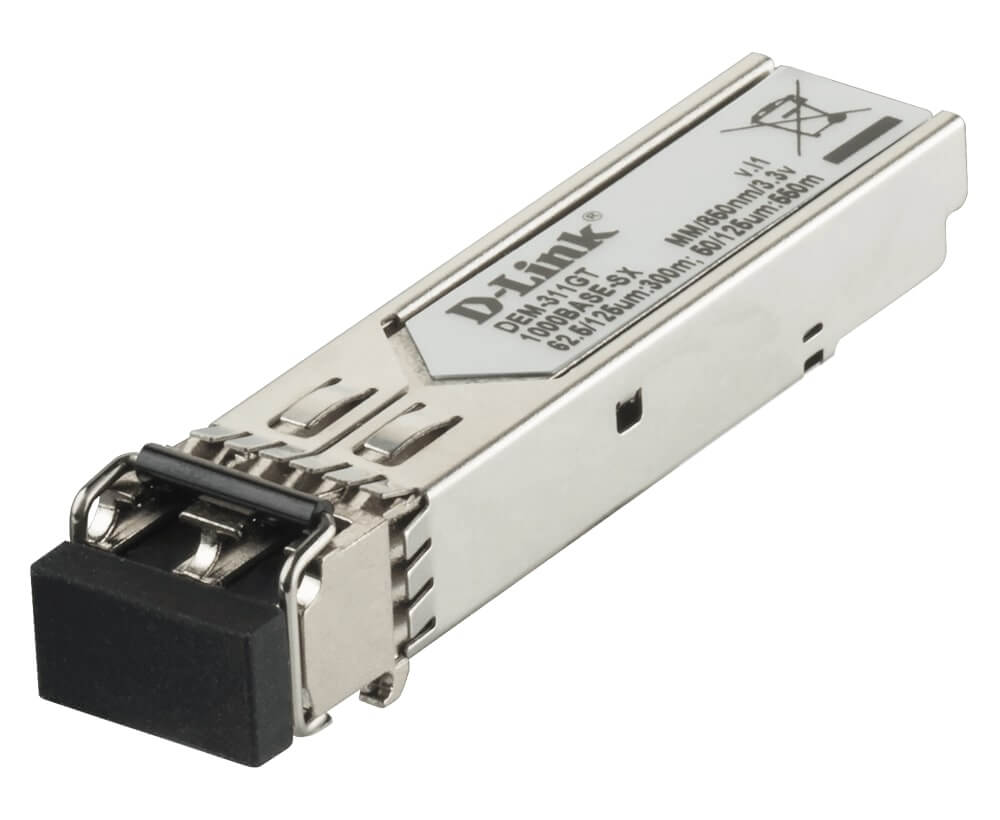

D-Link GBIC SX Multi-mode Fiber Transceiver (up to 550m, support 3.3V power)

Standard • IEEE 802.3z 1000Base-SX Wavelength • 850 nm Data Rate • 1.25 Gbps Connector • Duplex LC Fiber Type • 50/125 um Multi-mode Fiber Maximum Fiber Cable Length • 550 m Transmit Power Range • -3 to -10 dBm Receive Power Range • -3 to -18 dBm Sensitivity • -18 dBm Supported Features • Hot swap • MSA compliant • RoHS compliant Physical Parameters Power Support • 3.3 V Supply Current • 150 mA Temperature • Operating: 0° to 70°C • Storage: -40° to 85°C Humidity • Operating: 0% to 85% • Storage: 0% to 85% Dimensions • 55.4 mm x 13.7 mm x 8.5 mm Certificates • Class 1 laser: EN 60825-1 • FDA 21 CFR 1040.10 и 1040.11 The DEM-311GT Gigabit SFP fiber transceiver is external transceiver designed for insertion in SFP (Small Form-Factor Pluggable) slot of network device for transmission and reception of data signals on the fiber cables. This transceiver provides high-speed and reliable distance (up to 550 m) data transfer. The DEM-311GT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link Gigabit switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.

מפרט טכני

• סוג חיבור: אופטי LC
• מהירות: מבואות 1Gbit

מק"ט יצרן: DEM-311GT

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
