VOIP Gateway עם 24 יציאות FXS, יציאת WAN, יציאת LAN

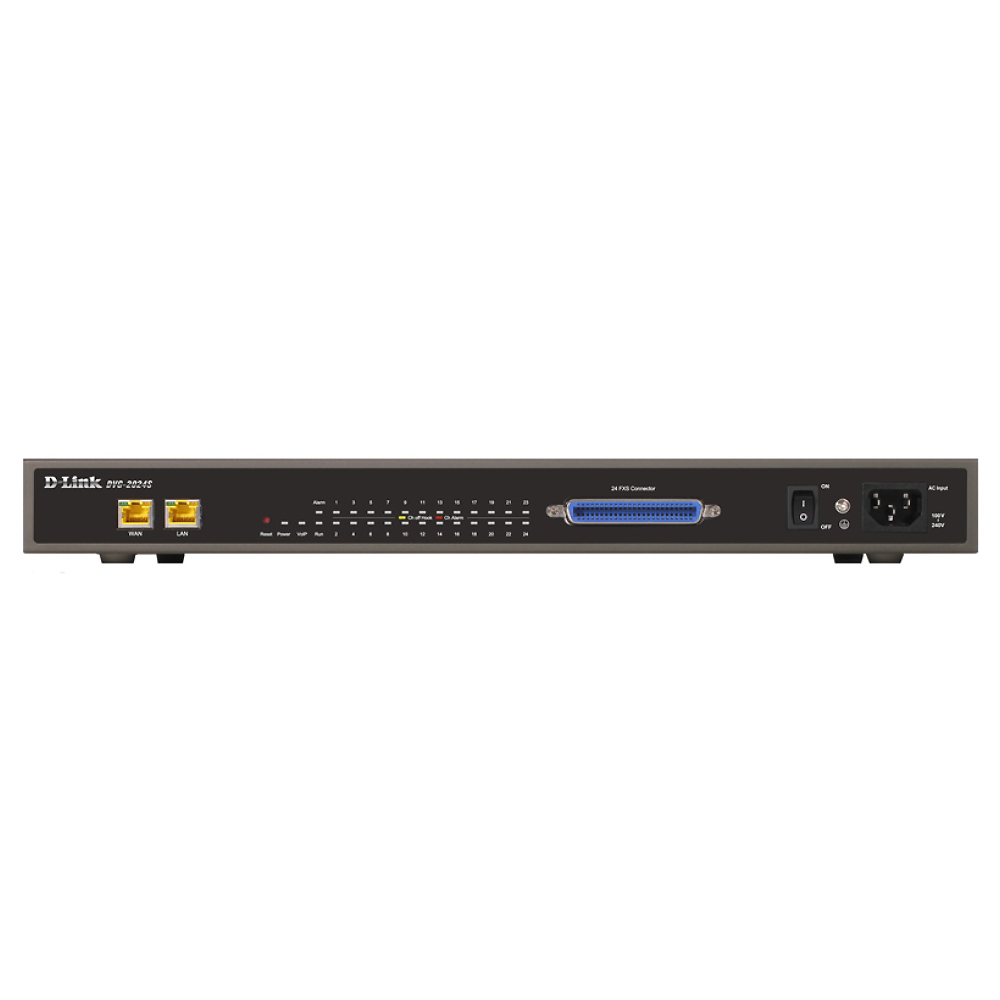

Interfaces • 24-port FXS c 1 RJ-21 connector • Port 10/100BASE-TX RJ-45 WAN • Port 10/100BASE-TX RJ-45 LAN Main functions • Transferring a call to a fixed number • Recall the apparatus employed • Digit Map (numbering plan) • Direct call IP-to-IP without SIP Proxy • Echo cancellation • Hot Line, Warm Line • Built-in phone book with the ability to speed dial • Music on Hold • MWI (LED voice messages) • The name of the caller and the call (FSK) • The main function calls: - Blocking of anonymous calls - Blocking and filtering of calls - Call Forwarding (Always, busy, no answer to the specified number, unconditional, not available) - Call history (status calls) - Call Hold - Caller ID (Support Proxy) - Block calls by IP-address of the caller - Interception of call - Dial the last number dialed - Call Forwarding (support Proxy) - Talk time - Transferring a call to a fixed number (Call park) and the removal of the call off hold (Call Retrieve) - Call Waiting - Do Not Disturb Voice Features • Codecs: G.711 a / u law, G.726, G.729A, G.723.1 • Voice Activity Detection (VAD) for G.711/723/729 • Comfort noise generation (CNG) for G.711/723/729 • Out of band DTMF event • Gain Control (incoming / outgoing) • Automatic detection and switching of voice / fax / data (up to 33.6 kbit / s) • Adjustable jitter-buffer • Detection and generation DTFM • Detection and generation of caller ID (Caller ID): BellCore type 1 and 2, ETSI • Detection of tones / multitona: 300-2 kHz • T.38 real time FAX/T.30 FAX bypass through G.711 • CPT: Continuous incremental modulation modulation, 16 steps (optional) • Supports FXS 12/16 kHz (optional) Management • Automatic upgrade (software / TR-069 (optional)) • Set up backup / restore • DHCP / PPPoE / Static / PPtP IP on the WAN port • DNS and Dynamic DNS • So

מפרט טכני

• מספר יציאות: 1
• מהירות: מבואות 10/100Mbit

מק"ט יצרן: DVG-2024S

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
