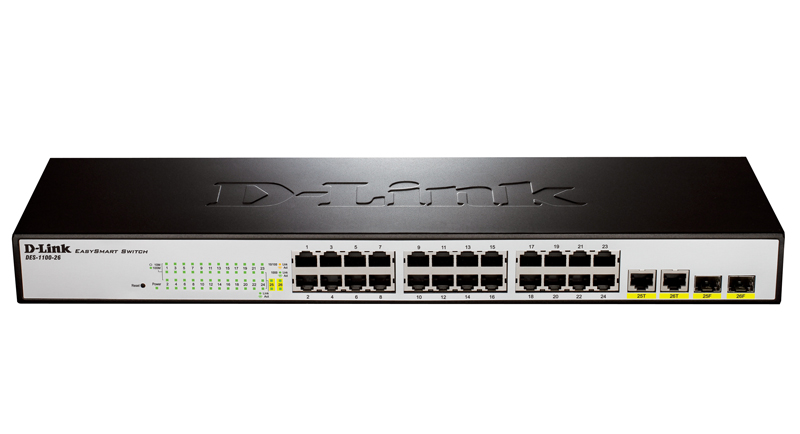

Switch 24 Port 10/100 + 2 Giga uplink ports, L2 Easy Smart, Metal

Interface • 24 10/100BASE-TX, 2 combo ports 10/100/1000BASE-T/SFP Functions of the port • Compliance with IEEE 802.3 • Compliance with IEEE 802.3u • Compliance with IEEE 802.3ab1 • Support for operations mode polnogo/poludupleksa2 • Auto-negotiation • Auto MDI / MDI-X • IEEE 802.3x Flow Control in full duplex rezhime1, the method of back-pressure mode poludupleksa1, the function of preventing head-lock (Head-of-line blocking prevention) a Performance • Switching Matrix: 8.8 Gb / s • Max. packet forwarding rate: 6,54 Mpps • Size of the MAC-address table: 4K • Packet Buffer: 2.75 Mbit / s • Flash-Memory: 1 MB Indicators • Power (per device) • Link / Activity / Speed ​​(per port) Software Llevel 2 functions • MAC-address table - DES-1100-16/24: 8K - DES-1100-26: 4K • IGMP Snooping • Static aggregation - Ports 10/100 Mbit / s max. 2 groups per device and 2-4 ports per group - Ports 10/100/1000 Mbit / s DES-1100-26: a group at the 2-port device, and a group of • Flow Control • The Loopback Detection • Port Mirroring - One-to-One or Many-to-One - Tx, Rx, and both • Statistics Support 4 groups: - Sent packets and collisions - Received and sent packets - Received and dropped packets - The received packets and CRC errors VLAN • 802.1Q Tagged VLAN • Group VLAN - DES-1100-16/24: support 32 static VLAN-groups - DES-1100-26: Support 26 Static VLAN-groups - VID 1-4094 • VLAN-based port • Management VLAN2 Quality of Service (QoS) • Bandwidth management: - Based on the port (Inbound / Outbound) - On the first definite step 512 kbit/s/1024 kbit / s / 2048 kbit / s / 4096 kbit / s / 8192 kbit/s/16384 kbit/s/32768 kbit/s/65536 kbit / s / • 2 queues per port • 802.1p • Queue management - Strict Priority - Weighted Round Robin (WRR) Security • Static MAC (Max. number of static MAC-address r

מפרט טכני

• מספר יציאות: 24
• מהירות: מבואות 10/100Mbit · 1Gbit SFP Ports 2 ניהול Managed L2 Rackmount כן

מק"ט יצרן: DES-1100-26

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
