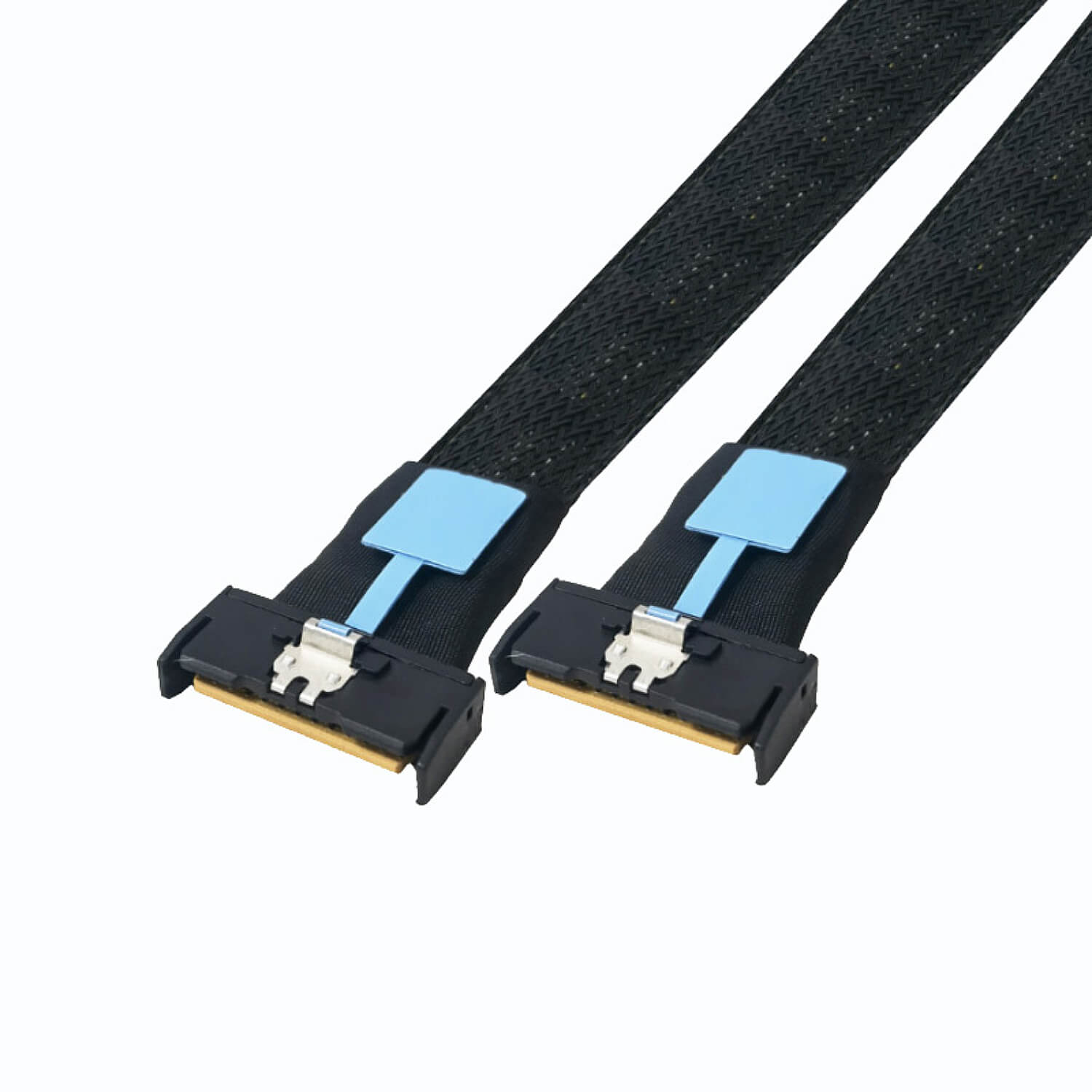

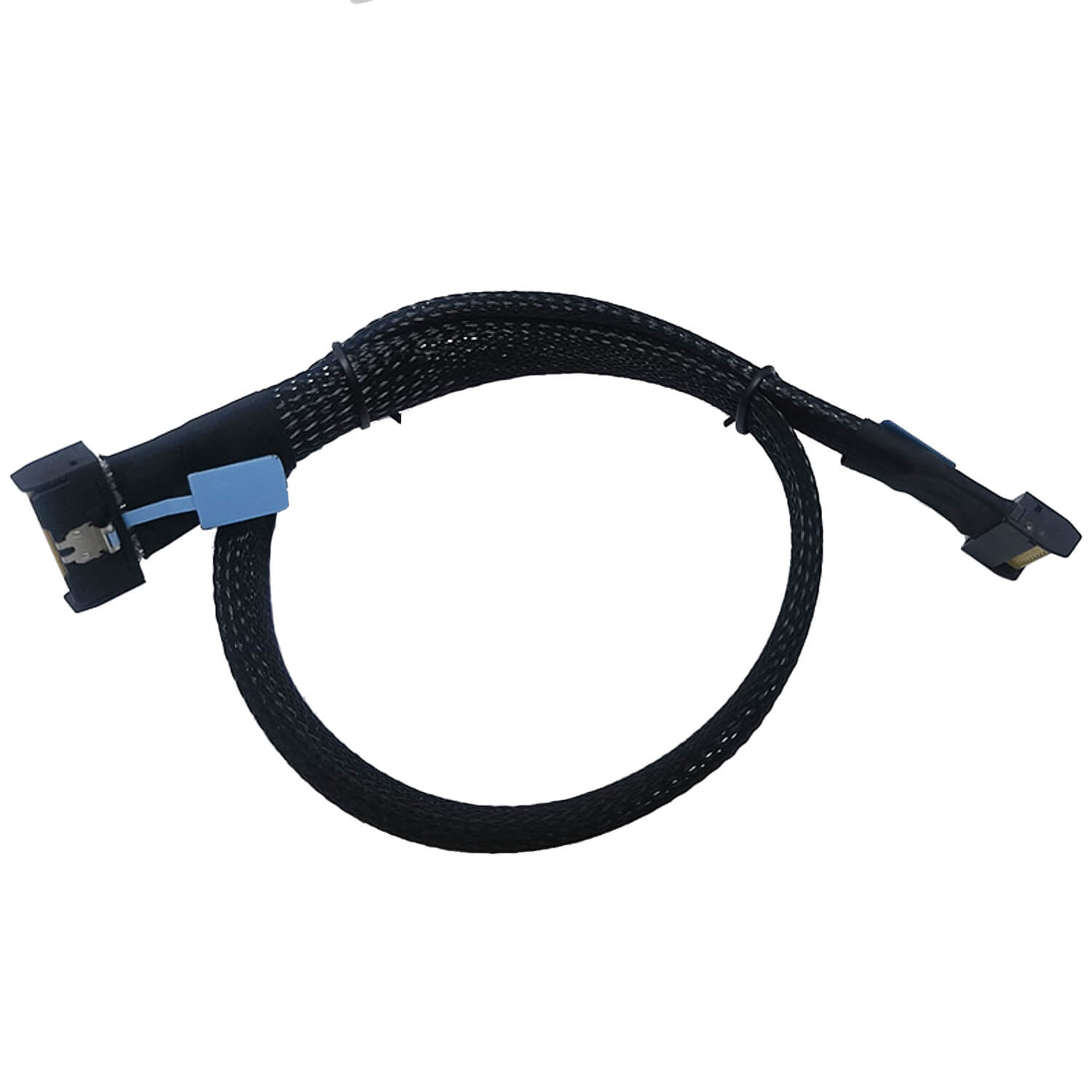

MCIO X8 to MCIO X8 50cm Data Cable

Mini Cool Edge IO is a flexible, robust, and cost-effective connector and cable assembly solution that helps server and network equipment design flexibility, reduce overall footprint, and extend coverage for high data rate signals. This solution is suitable for applications requiring 24Gbps SAS 4.0 signals, 32GT/s PCIe Gen5, and 64GT/s PCIe Gen6 signals. With a 0.6mm contact pitch, the compact connector saves space in end devices and supports cable-to-board and card-to-board applications. The MCIO X4 (38pin) and MCIO X8 (74pin) connectors are optional connectors for transmitting differential and sideband signals now and in the future. Regular length: 0.5m/0.7m (can be customized on demand) Transmission rate: 32 GT/s (8 channels) Interface 1: MCIO X8 straight Interface 2: MCIO X8 straight Compliant with SCSI (SAS), PCIE5.0 specifications The rate supports PCI-e 5.0 32 GT/s standard and is backward compatible with PCI-e 4.0

מפרט טכני

• סוג כבל: כבלי נתונים
• חיבורים: MCIO
• אורך כבל: מ' 0.50
• הערות: ללא זכות החזרה

מק"ט יצרן: CST-MM701

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
