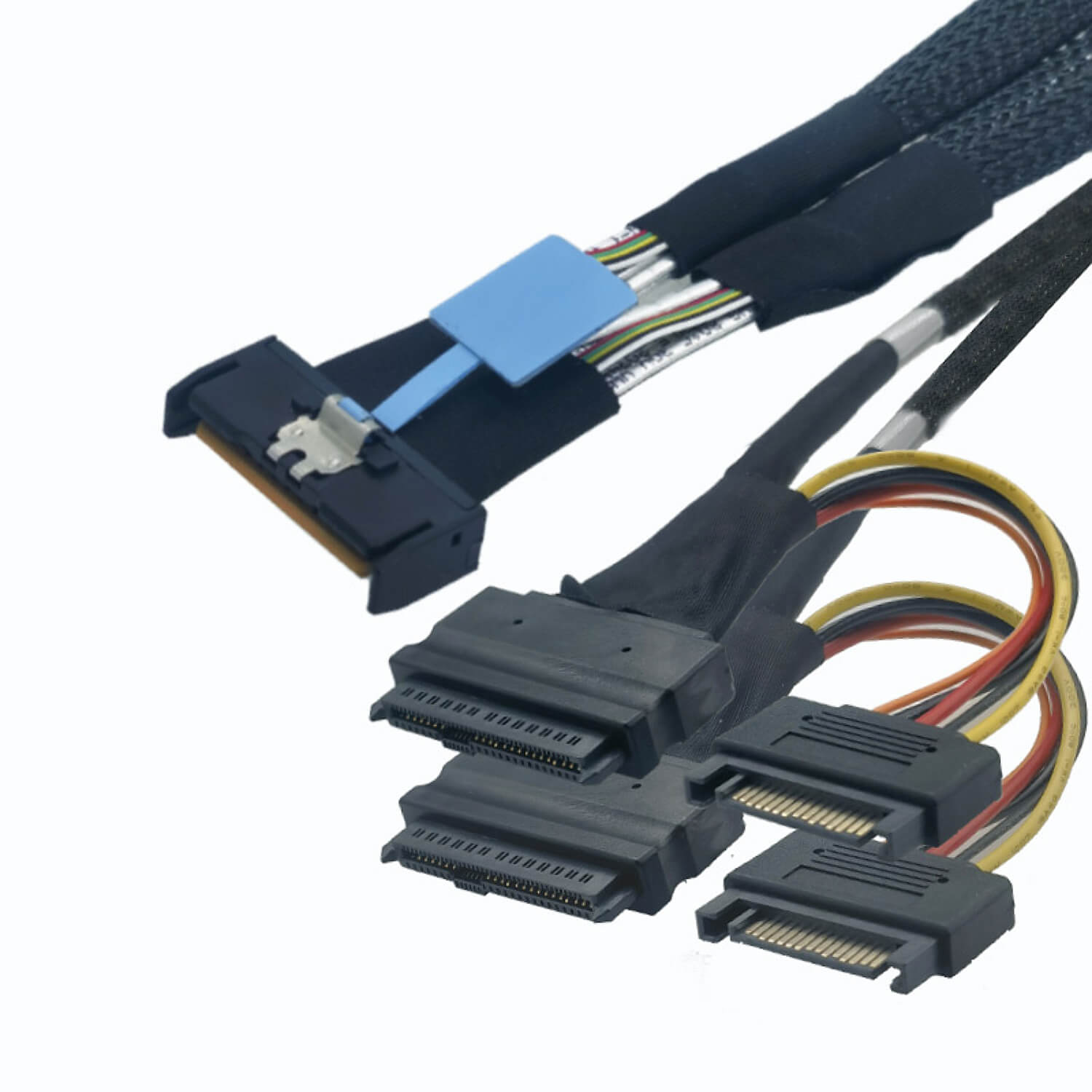

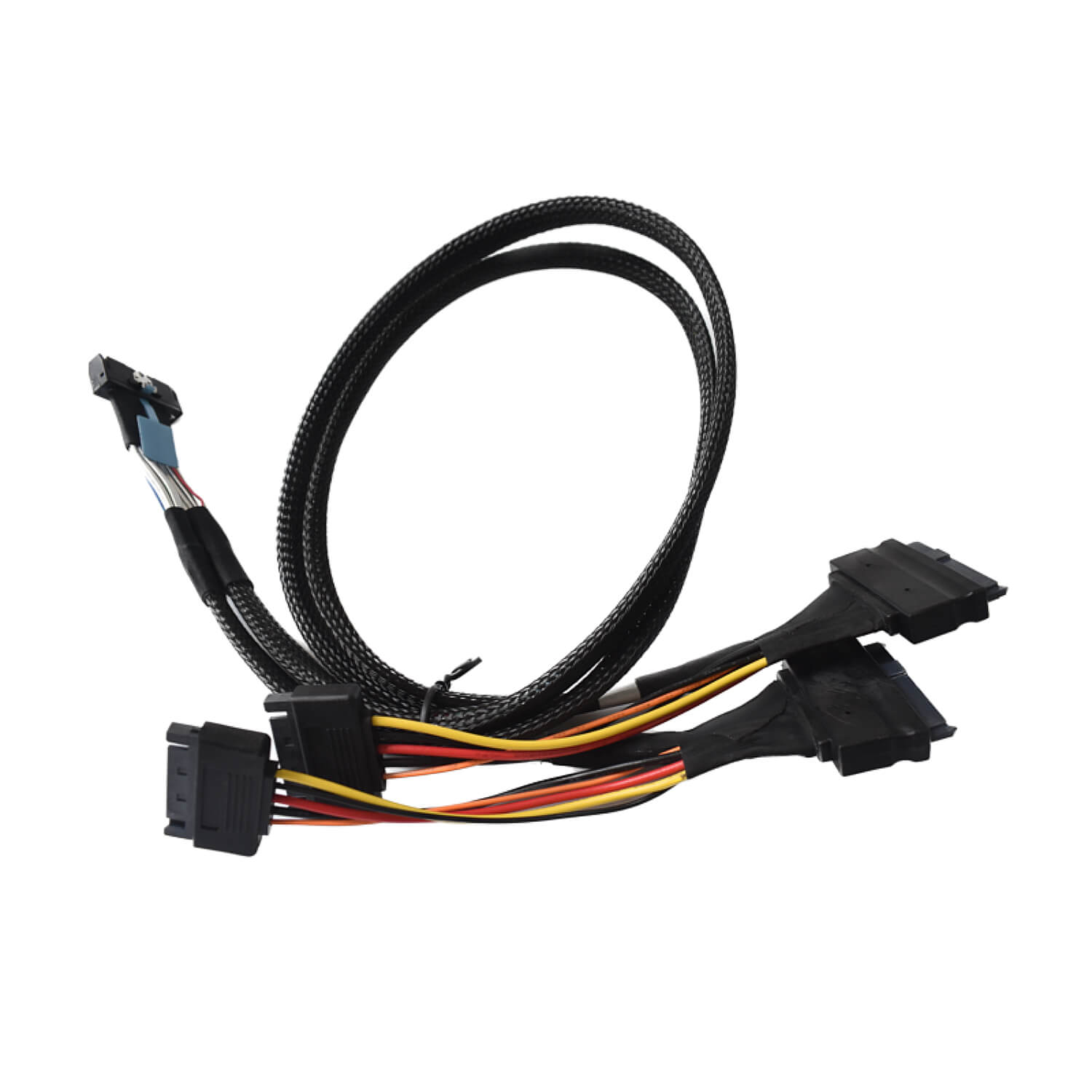

MCIO X8 to 2xSFF-8639 U.2 65cm Cable

Mini Cool Edge IO is a flexible, rugged, and cost-effective connector and cable assembly solution that helps you flexibly design server and network equipment, reduce overall space, and extend the reach of high-data-rate signals. This solution can be used for 24Gbps SAS4.0 signals and 32GT/s PCIe5.0 signals. With 0.6mm pin pitch, the compact connector saves space in end equipment and supports cable-to-board and card-to-board applications. MCIO X4 (38-pin), MCIO X8 (74-pin) are optional connectors for carrying differential and sideband signals now and in the future. Product length: 0.5m/0.7m Transmission rate: 32 GT/s (8 channels) Interface 1: MCIO X8 straight Interface 2: 2*SFF-8639 (U.2) SCSI (SAS), PCIE 5.0 compliant The rate supports PCI-e 5.0 32 GT/s standard and is backward compatible with PCI-e 4.0

מפרט טכני

• סוג כבל: כבלי נתונים
• חיבורים: MCIO · SFF
• אורך כבל: מ' 0.65
• הערות: ללא זכות החזרה

מק"ט יצרן: CST-MU702-G5

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
