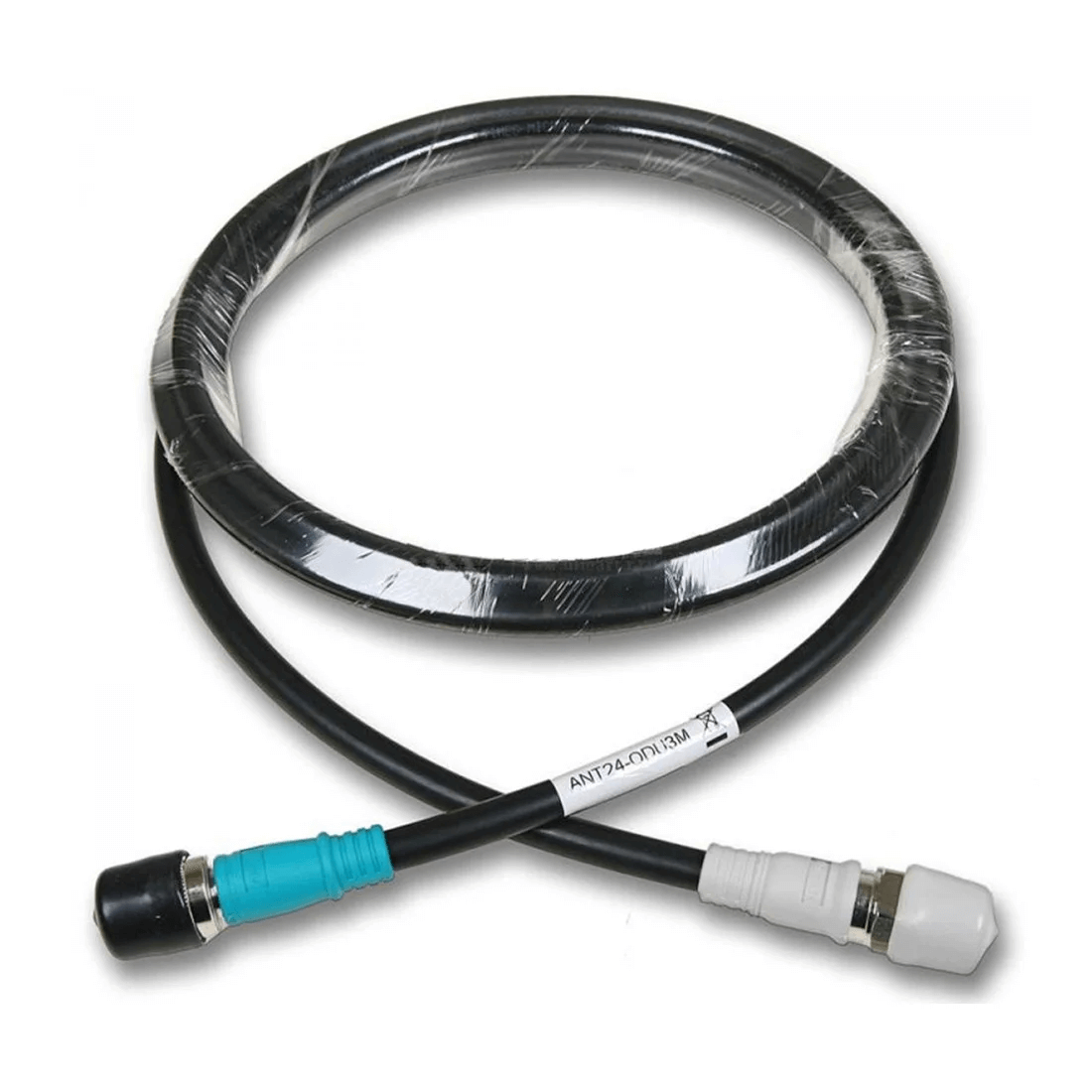

D-Link Antenna Cable 3M Low loss cable

Operating Frequency Range • 2.4 to 2.5 Ghz • 5.15 to 5.75 Ghz Nominal Characteristic Impedance • 50 Ohm Insertion Loss @ 2.4 to 2.5 Ghz • 0.85 to 1 dB Insertion Loss @ 5.15 to5.75 Ghz • 1.6 to 1.75 dB VSWR • 1.6:1 @ 5.15 to 5.75 GHz Mechanical/Environmental Specifications Cable Length • 3 m Cable Jacket • Black Polyethylene Cable Loss • 1 dB Connectors • RP-N Plug & N Plug Minimum Bend Radius • 12.7 mm Environment • Outdoor/Indoor Operating Temperature Range • -40 C to +85 °C Weatherproof • Yes UV Rating • 5 Years Replacing Default Antennas With Higher Gain Antennas Your wireless LAN devices such as access points and remote routers are equipped with external antennas for signal transmission and reception. These antennas have a certain Gain, providing an operation range determined by their manufacturers. Many manufactures equip their wireless devices with removable external antennas, allowing you to replace them with higher Gain antennas in case you wish to expand the operation range of your wireless network. To replace an antenna of a wireless device with a higher Gain antenna, you can (1) remove the old one and mount the new one directly on the device, or (2) place the new antenna away from the wireless device in an exposed open space through an antenna extension cable for better signal transmission/reception. Outdoor Installation The D-Link antenna cable kits provide the extension cables necessary to install an antenna away from a wireless device. Various cable lengths are available for selection to meet different installation requirements. These antenna cable kits are made of solid materials, providing protection from operation stress and rough environment conditions, including high heat, heavy rain, and intense sunshine. Indoor Installation For an indoor installatio

מק"ט יצרן: ANT24-ODU3M

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
