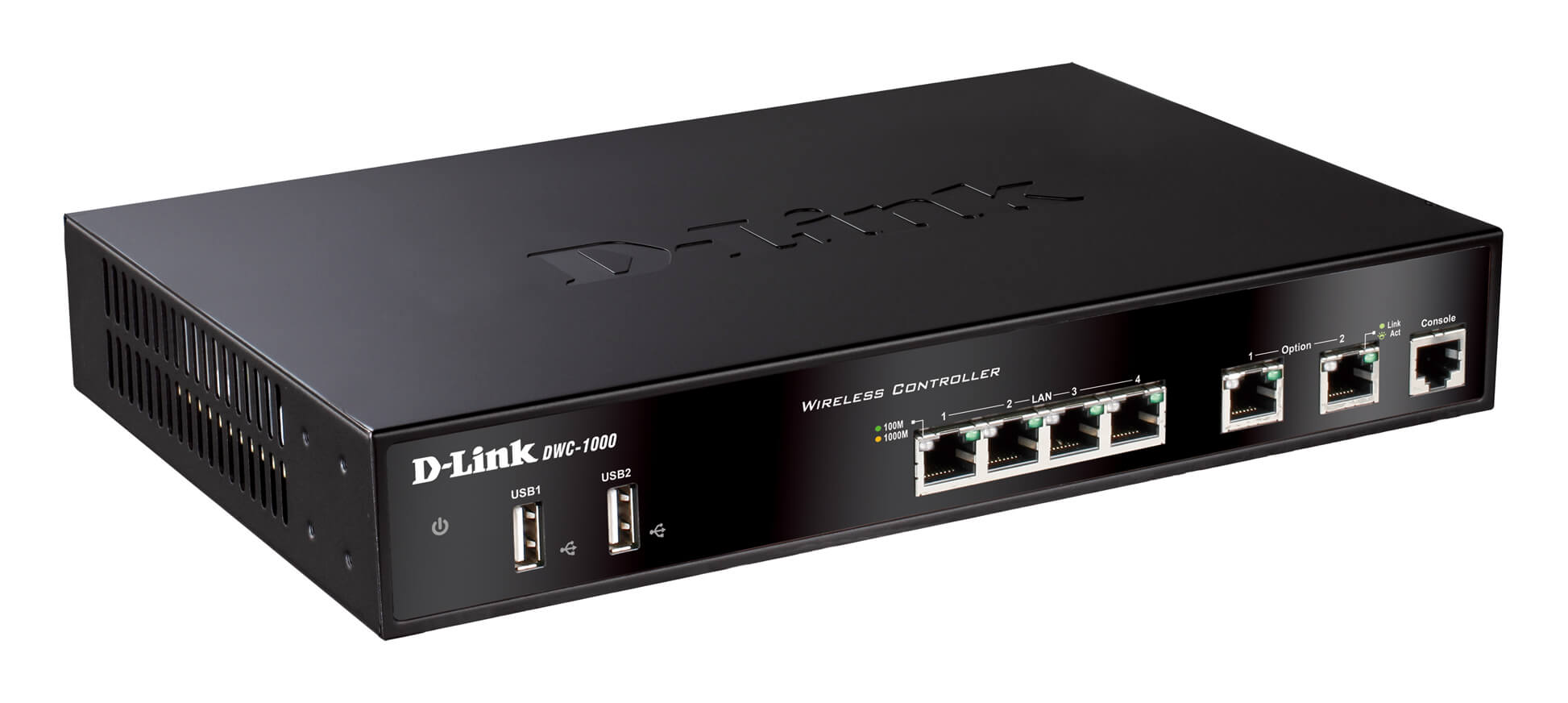

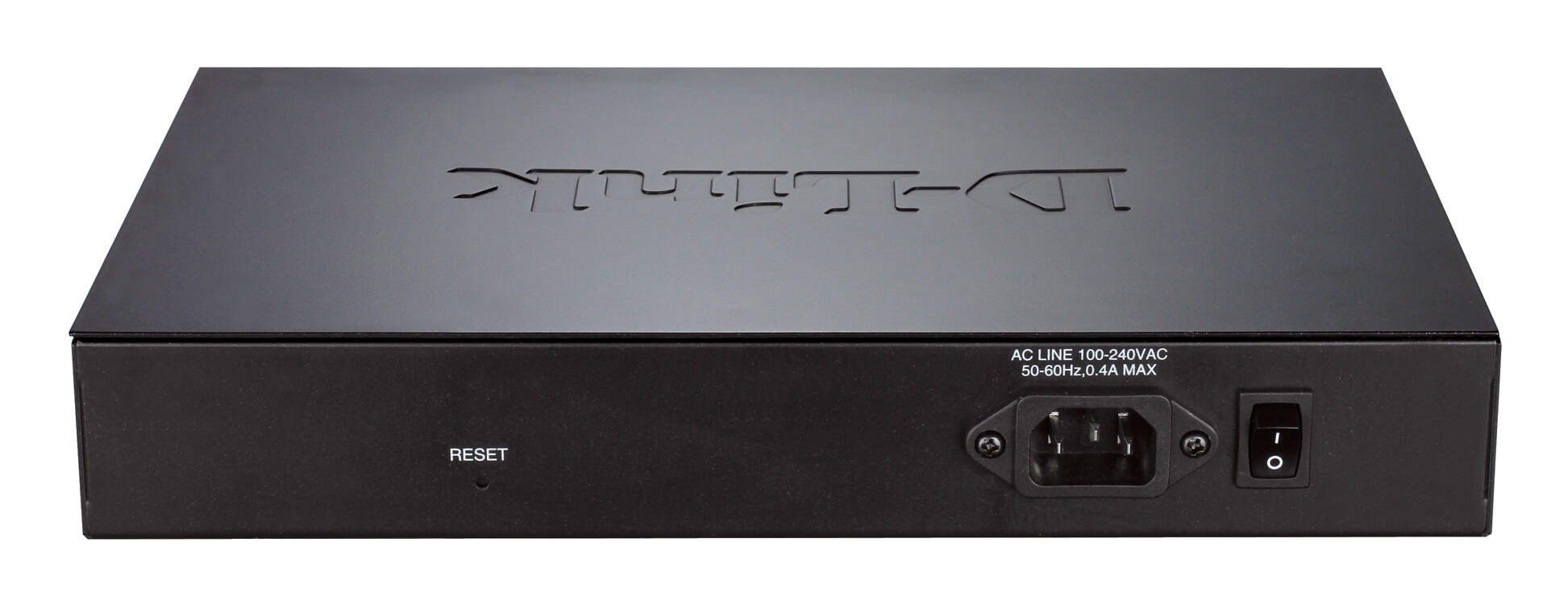

D-Link Access Point Wireless Controller

Interface • Ethernet: 2 10/100/1000 option ports* 4 10/100/1000 LAN ports • USB: 2 USB 2.0 ports • Console: RJ-45 Capacity and Performance • Maximum Access Points per unit (default/upgrade): 6/24** • Maximum Access Points per cluster (default/upgrade): 24/96** • Concurrent Captive Portal authentication users (Wired/ Wireless): 124/ 400 • Dedicated IPSec VPN tunnels***: 70 • Dedicated PPTP/L2TP VPN tunnels***: 25 • Dedicated SSL VPN tunnels***: 20 Access Point Management • Compatible Managed APs: DWL-8600AP, DWL-6600AP, DWL-3600AP • AP Discovery & Control: Layer-2, Layer-3 • AP Monitoring: Managed AP Rogue AP Authentication Fail AP Standalone AP • Client Monitoring: Authenticated Client Rogue Client Authentication Fail Client Ad-hoc Client • Supports Centralized RF/Security Policy Management Roaming • Fast Roaming • Intra-controller/Inter-controller roaming • Intra-subnet/Inter-subnet roaming Security • Wireless Security: WEP Dynamic WEP WPA Personal/Enterprise WPA2 Personal/Enterprise • Wireless Instruction Detection & Prevention System (WIDS): Rogue and Valid AP Classification Rogue AP Mitigation • LAN Security: 802.1x port-based access control and guest VLAN • Authentication: Captive Portal MAC Authentication VLAN • VLAN Group: up to 255 entries • 802.1q VLAN Tagging • Subnet-based VLAN • Port-based VLAN Firewall System*** • Policy: Each feature supports 100 rules Supports up to 600 firewall rules • Dynamic Route: RIPv1, RIPv2 • Dynamic DNS • NAT, PAT • Web Content Filtering: Static URL Keywords Networking*** • Route Failover • Outbound Load Balancing Virtual Private Network (VPN)*** • Encryption Methods: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL • IPSec NAT Traversal • Dead Peer Detection • IP Encapsulating Security Payload (ESP) • IP Authentication Header (A

מפרט טכני

• מהירות: מבואות 10/100Mbit · 1Gbit
• מספר יציאות: 6

מק"ט יצרן: DWC-1000

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
