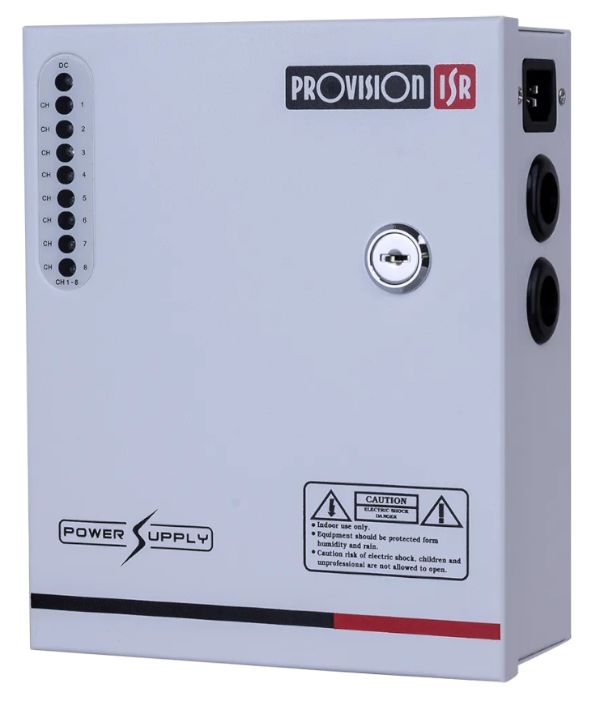

ספק כוח מרכזי לתליה על הקיר מתאים לעד 8 מצלמות 12V DC 5 AMP

מפרט טכני

• Nominal Voltage Range: 100VAC-240VAC 50/60Hz
• Full Voltage Range: 90-264 VAC 47/63 Hz
• Peak Output Power: 60 Watts, 72 watts surge
• Output Current: 5000mA (5.0A) continuous, 6000mA (6.0) surge
• Load Regulation: ±3% over rated current: 0 - 5000 mA
• Line Regulation: 5% over range 100VAC-240VAC
• Output Voltage Nominal: 12VDC
• Rise time: 5mS with 5A load
• Efficiency: >88% from 25% to 100% load
• Quiescent power: <0.21 Watts
• Output plug: 5.5 x 2.1 mm barrel connector, center positive, see below for others
• Protecion: Short circuit, auto recovery, overcurrent for amperages between 5.5A and 9A auto recovery
• Temperature range: Tested at 0°C to 40°C full load
• Storage Temperature: -40°C to 85°C
• Dimensions: 62 mm x 36 mm x 114 mm (2.4 inch x 1.4 inch x 4.5 inch)
• Agency approvals: CE EN62368, FCC, ROHS, CCC GB4943, PSE J62368(2020), ETL ETL62368-1, SAA AS/NZS 62368, EK/KC K62368
• Weight: 290 grams, 9.5 oz. without the AC wire cord

מק"ט יצרן: ML-0A8307C8

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
