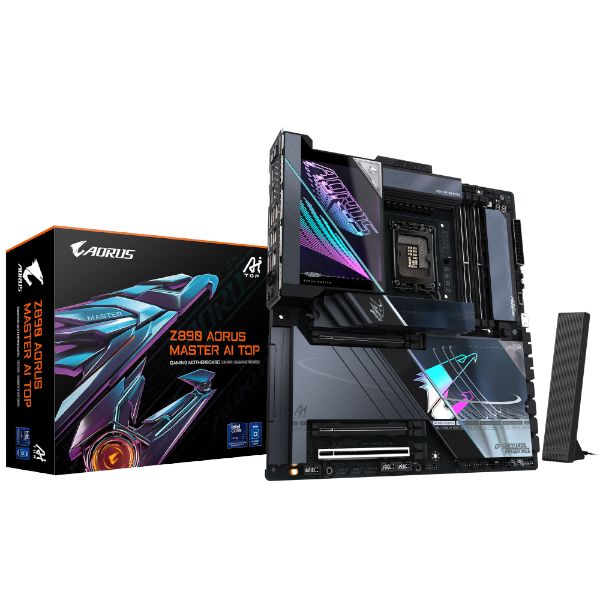

לוח אינטל דור 15 GIGABYTE Z890 AORUS MASTER AI TOP E-ATX WIFI7

מפרט טכני

• CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
• Chipset: Intel® Z890 Express Chipset
• Memory: Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7
• Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support: - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video
• Audio: ESS ES9280 chip (rear panel audio) - Support for DTS:X® Ultra - High Definition Audio - 2-channel ESS ES9118 DAC chip (front panel audio)
• LAN: 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module: Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual
• Expansion Slots: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Storage Interface: CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0
• USB: CPU: - 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up
• Internal I/O Connectors: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/wate
• Back Panel Connectors: 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna c
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
• BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features: Support for GIGABYTE Control Center (GCC)

מק"ט יצרן: ML-6F2E4C8F

אחריות יבואן רשמי. המוצר חדש באריזה מקורית.
